HPS medium-voltage switchgear

Air-insulated medium-voltage switchgear. Check out our brochure for more information and read the following technical specifications.

Installation:

The switch panels are suitable for wall mounting or for back-to-back standalone installation in a switching room.

Accessibility:

IAC
("Internal Arc Classified")

A
Metal-encapsuled switchgear, only accessible for qualified electricians/trained personell

FLR
F = Front access
L = Lateral access
R = Rear access

MALu:

IAC A FLR 40 kA, 1s

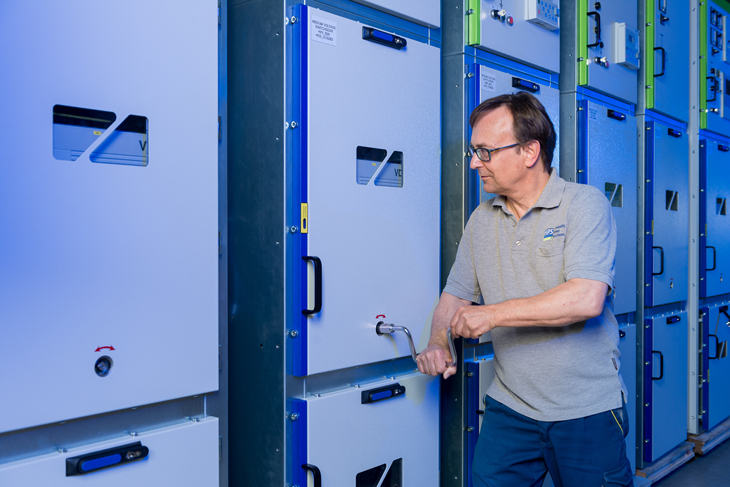

HPS Mittelspannungsschaltanlage Inbetriebnahme

Extension:

  • With fixed equipment installed
  • With removable units



  • With single busbars
  • With double busbars

for:

  • Power utilities
  • Power plants
  • Industrial plants
  • Public buildings
  • ...

Material:

  • Structural, extension and covering parts fine galvanized sheet metal and/or stainless steel
  • Material gauge 2 mm and 3 mm
  • Zinc coating in comliance with DIN 17162/59233
  • Blooming-free, lead-free, guaranteed consistent corrosion protection at every point in components.

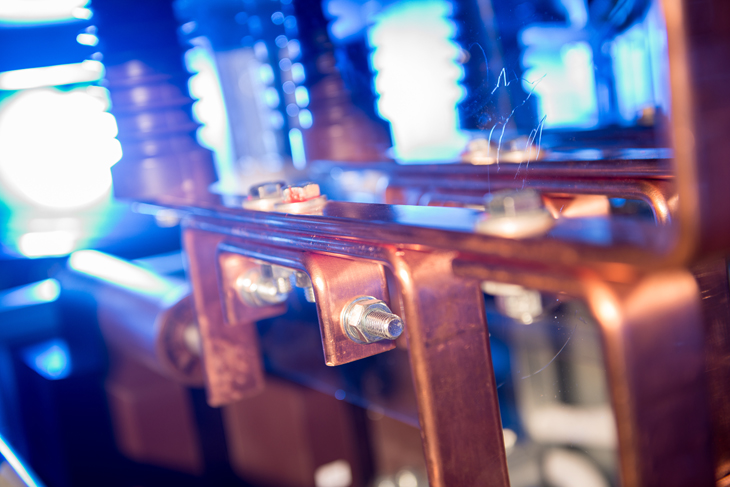

Mittelspannungsschaltanlage Kupferschiene

Color:

  • Only doors and panels are additionally powder-coated
  • Side and rear plates on request
  • Standard shades:
    Trim parts RAL 7035
    Strike plate doors RAL 3000
  • Other RAL shades are possible on request.

Busbars:

Busbar made of completely rounded copper, heat shrunk

Rated current Cross section
630/1250 A Cu 1 x 80/10
1600/2000A Cu 2 x 80/10
3150 A Cu 3 x 80/10

Branches:

Branches made of completely rounded copper, heat shrunk

Rated current Cross section
630/1250 A Cu 1 x 80/10
1600/2000A Cu 2 x 80/10
3150 A Cu 2 x 120/10

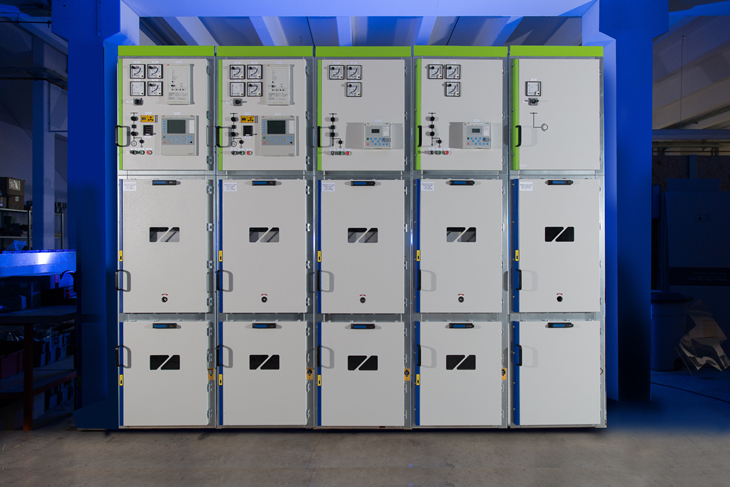

HPS Mittelspannungsschaltanlage

Function rooms:

The switch panels consist of four function rooms:

  • Busbar room
  • Equipment room
  • Cable connection room
  • Low-voltage compartment

Busbar room:

The busbar room is separated by steel plant partitions from all other function rooms. Panel-to-panel partitions are implemented using sheet metal walls with an air gap of 8 mm. Busbar partitions are implemented using GFR boards and cast-resin screw penetrations.

Switchgear compartment:

The switchgear compartment is designed for installing

  • Vacuum circuit breakers
  • Vacuum contactors
  • Ground switches
  • Measurement (voltage transformer)

each mounted on draw-out unit. The connection to the busbars and cable connection room is via contact isolators.

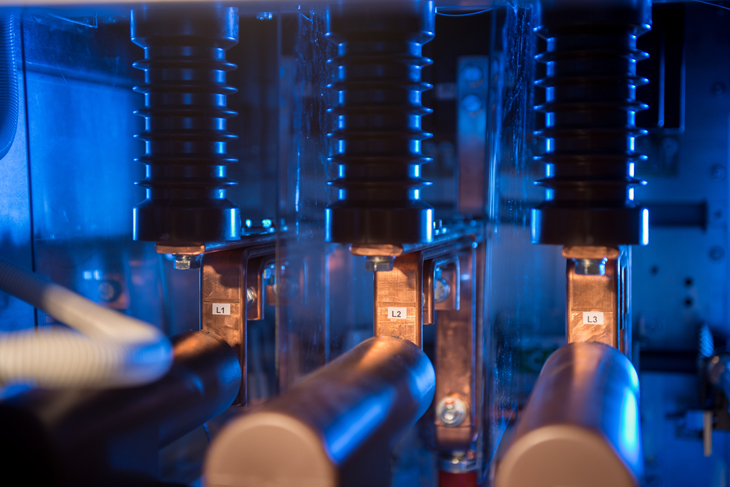

Mittelspannung Schaltgeräte

Positions:

  • Operating position
  • Isolated position / test position



Using the draw-out units is to be done with the door closed. Switching from the operating position to the isolated position can only be carried out with switchgear turned off. If the draw-out is switched out of the operating position, the metal shutters close. Switching actions can only be carried out of the operating position, the metal shutters close. Switching actions can only be carried out in a predefined position (operating or isolated position). It is possible to see the position of the circuit breakers / contactors through an inspection window.

Cable connection room:

The cable connection room is designed for installing

  • 3 current transformers
  • 3 voltage transformers
  • 3 overvoltage arrestors
  • 1 ground switch
  • Various auxiliary contacts.

Depending on the rated current, connection designs for up to 4/8 parallel cables are possible. The closed base plates are tripartite. Cable entries, cable mounting and cable clamps according to number of power cables.

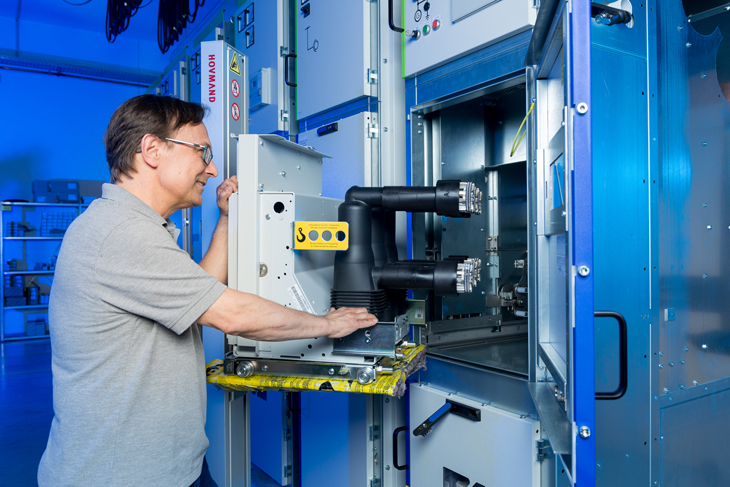

Mittelspannung Einschübe

Low voltage compartment:

The low-voltage compartment is  500 mm high in a 2200 mm high panel. The low-voltage compartment height can be increased by 300 mm to 800 mm. The depth of 400 mm provides ample space. Steel cable channels terminate in the low-voltage compartment. The device plate is removable.

Penetrations with rubber sleeves as edge protection / plugs are provided for cross-wiring to the neighboring switchgear. The pressure-resistant door is prepared for installation of auxiliary devices. The vertical strengthening elements are equipped with a hole grid for holding cross-profiles with wiring channels and hose clamps.

Safe and reliable operation

Personal safety:

A key focus in system development was personal safety during operating actions. All switching actions are carried out safely and reliably with the switchgear door closed.

Operational safety / mechanical locks:

  • The circuit breaker can only be switched while in the operating or isolated position.
  • The draw-out unit can only be moved from operating to isolated position if the circuit breaker is switched off.

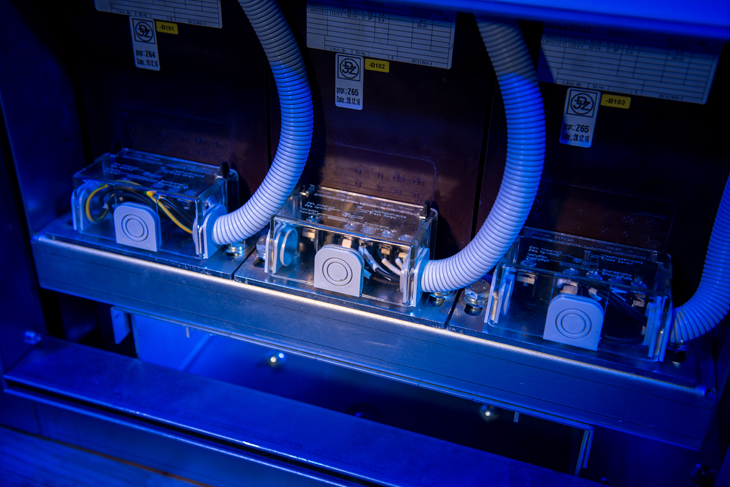

Mittelspannung Geräte

Safe and reliable operation – Options:

  • The draw-out unit can only be moved from the isolated to operating position if the control cable plug is connected.
  • The control cable plug can only be disconnected while in the isolated position.
  • The draw-out unit can only be moved to the operating position if the ground switch is turned off.
  • The door of the switchgear compartment does not open if the draw-out unit is in the isolated position. The shutters are located in front of the contact isolators. The lock can be released using a reset bolt.
  • The door of the cable connection room can only be opened if the ground switch is turned on. The lock can be released using a reset bolt.
  • The shutters can be locked (padlock).

All doors can be locked with a pivot lever lock while in the closed position.

  • The switchgear compartment door can be closed either with a double-bitted key or a profile cylinder.
  • The cable connection room door can be closed either with a double-bitted key or a profile cylinder.
  • Door hinge right, standard.
  • Door hinge left, on request.

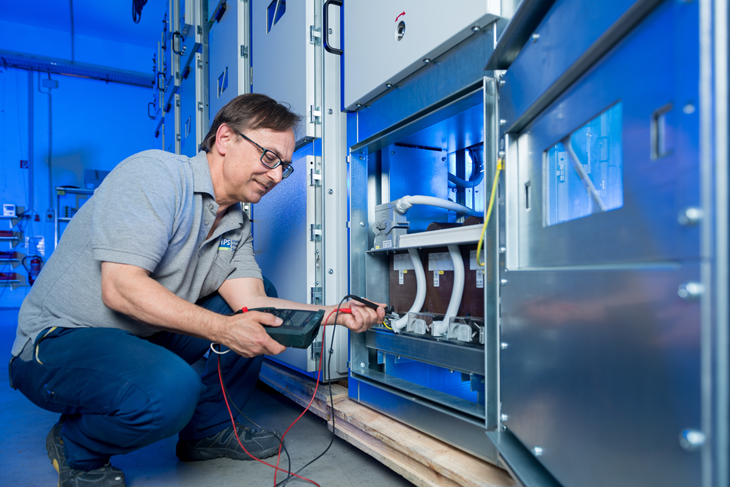

Mittelspannung Betriebssicherheit

Field dimensions with SION-M/J64 and SION/J64

UR IR ISC Pole spacing
Width Depth Height
kV A kA P = mm PS = mm mm mm mm
...12 630 ... 31,5 150 205 650 1200** 2200*
  1250

  1250 ... 40 210 310 800
  1600
  2000

  1250 ... 40 275 310 1000
  1600
  2000
  2500
  3150

... 17,5 630 ... 31,5 150 205 650 1200** 2200*
  1250

  1250 ... 40 210 310 800
  1600
  2000

  1250 ... 40 275 310 1000
  1600
  2000
  2500
  3150

... 24 630 ... 25 210 310 800 1450** 2300*
  1250

  630 ... 25 275 310 1000
  1250

  1600 ... 25 275 310 1000
  2000
  2300



** for the doors and rear plates 2 x 30 mm = 60 mm
* with deflector plate + 300 mm / with pressure relief channel + 400 mm

Other technical data and dimension possible on request!
